1/10 TRF104 2WD Formula-1 Chassis Kit
In Stock

1/10 TRF104 2WD Formula-1 Chassis Kit

2WD
Item No.
Tamiya - TAM42389
Write a Review
$379.40
RC Club points earned on this item shown at checkout.
Product $379.40
Add Ons
Estimated Total: $379.40
Estimated Total: $379.40
The link to 1/10 TRF104 2WD Formula-1 Chassis Kit has been copied
Selected Store

Overview

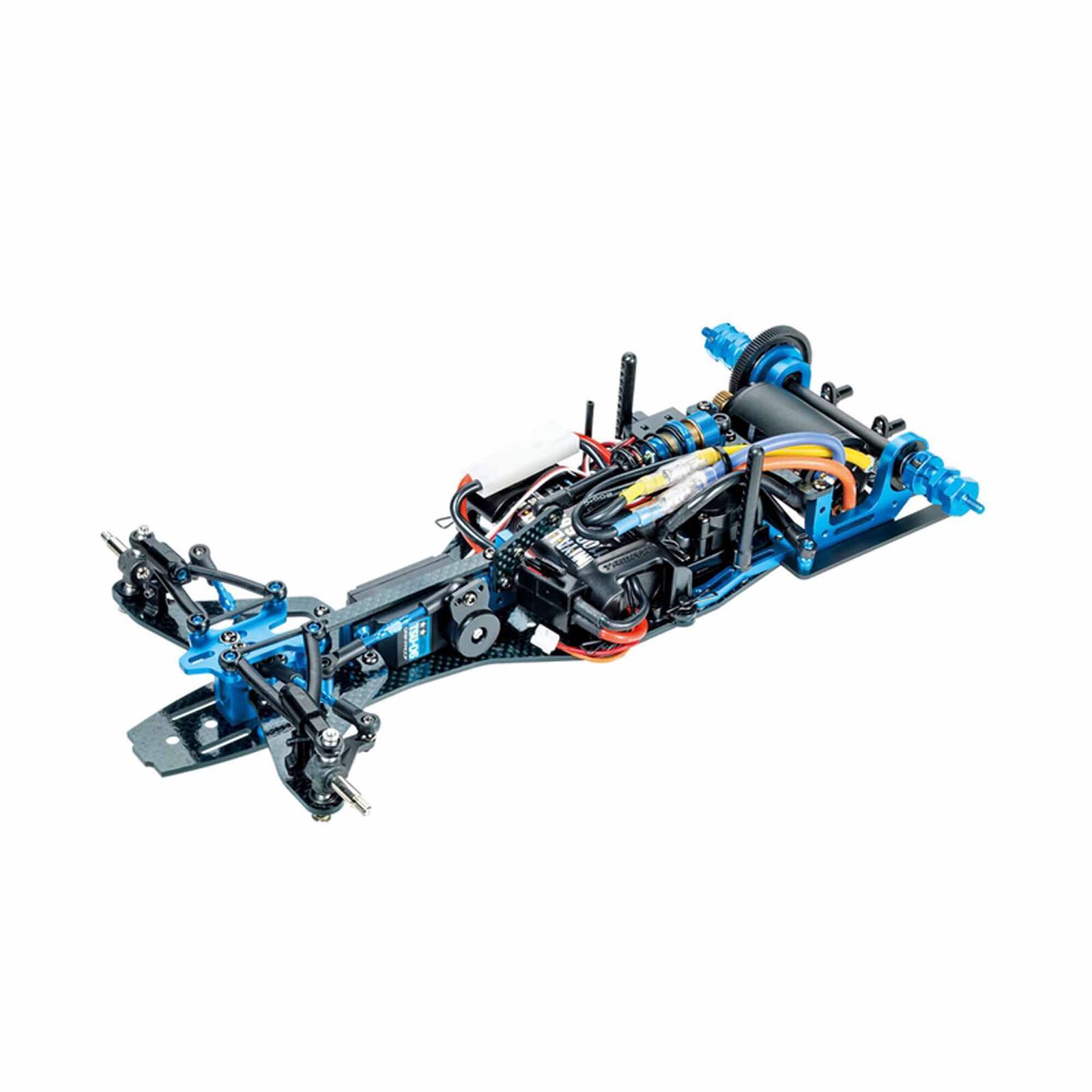

This hi-spec 2WD formula chassis, built around carbon fiber and aluminum chassis components, with the front lower arms crafted from carbon fiber plate, makes it a formidable opponent on the racetrack! Furthermore, the chassis features updated front and rear suspension, plus an updated R/C equipment layout which is compatible with Li-Po batteries.

  • Full Ball Bearings
  • Square-Shaped Battery Holder
  • Laid Down Steering Servo Position
  • Camber Angle Is Freely Adjustable
  • Caster Angle Is Also Adjustable

Features

  • Features plastic upper A-arms
  • Camber angle is adjustable freely from +1 to -3 degrees (approximate) using a 2mm hex wrench
  • Caster angle is also adjustable at 6, 9 and 12 degrees
  • Ball connectors are equipped at motor mount front and rear, and suspension roll is placed at the center of the chassis
  • The model centering is controlled by roll springs under the rear shaft, and friction grease on roll dampers at motor mount allow adjustment of roll speed
  • The pitching is controlled by FRP suspension plate flex and a TRF damper
  • Battery pack, receiver and servo are positioned at the center of chassis to ensure better rear grip
  • A square-shaped battery holder is included, for Li-Po battery packs to comply with U.S. open-class regulations
  • 5 types of ground clearances are adjustable in 0.8mm steps and two wheelbases can be chosen with a difference of 2.5mm
  • The laid down steering servo is positioned about 30mm backwards compared to the TRF103 chassis and ensures a low center of gravity
  • Features a choice of 4 types of steering linkage adjustments over a range of about 1.8mm length by changing Ackerman plate position to keep direct steering
  • Lightweight and durable carbon fiber shaft limits weight and ensures compatibility with rubber tires which are relatively heavy
  • The rear wing is connected to the motor mount, and it moves along with rear suspension
  • 2.5mm thick carbon fiber front lower suspension arms have two attachment positions to adjust its width and attach wheels with different offsets

Product Specs

Ball Bearings
Full Ball Bearings
Battery
Sold Separately
Body
Sold Separately
Charger
Sold Separately
Chassis
Carbon Fiber Chassis
Completion Level
Kit
Differential
Pressure Plate Ball Differential
Drive Type
Forward/Brake/Reverse
Drivetrain
2WD
Gear Ratio
Adjustable
Ground Clearance
Adjustable
Manufacturer #
42389
Motor Size
540
Power Type
Electric
Product Height
1.83" (46 mm)
Product Length
12.79" (325 mm)
Product Width
6.65" (169 mm)
Radio
Sold Separately
Receiver
Sold Separately
Scale
1/10
Servos
Sold Separately
Shock Type
Oil Shocks
Speed Control
Sold Separately
Suspension
CVA Oil Filled Rear Mono Shock/Coil Spring Front Suspension
Vehicle Size
Standard
Vehicle Type
On-Road

Compatibility

No results for your given fitment filters
The TRF104 is a high-spec formula one chassis that takes the genre to a new level!

Product Details

icon-box
In The Box
  • (1) 1/10 TRF104 2WD Formula-1 Chassis Kit
icon-how-to
Needed to Complete
  • (1) 2+ Channel Radio System
  • (1) Standard-Size Steering Servo
  • (1) 540-Size Electric Motor
  • (1) Electronic Speed Control
  • (1) 7.2V - 7.4V Battery
  • (1) Battery Charger
  • (1) Formula-1 Body Set
  • (4) Formula-1 Wheels & Tires
