Next Shipment Date Unknown
1/28 MR-04EVO2 Chassis with V2 Gyro Kit, 5600KV
Item No.
Kyosho -
KYO32894G
$249.99
RC Club points earned on this item shown at checkout.
MR-04EVO2 Chassis
At the end of 2023, the Mini-Z MR-04EVO2 underwent a full model change after 14 years. Building on the MR-03’s proven layout, the MR-04EVO2 model introduced a sensor-equipped brushless motor, a redesigned front suspension, and a lower battery position—resulting in a major performance leap. Now, the MR-04EVO2 receives a key update with even further upgrades. Featuring reinforced 2.0 front suspension arms previously introduced in the RWD series, the updated model now includes the widely adopted gyro unit set as standard. Upgraded to Version 2, the gyro offers a refined balance of stability and cornering precision, enhancing both race performance and the driving experience. Another key improvement is the new RC unit that enables motor RPM control for precise tuning which is essential for racers while maintaining fair competition as Mini-Z Cup rules shift from regulating motor KV (RPM per volt) to directly regulating RPM in 2025. The MR-04EVO2 fully supports this new system, and with the I.C.S. Setting Manager, users can easily configure motor settings to match class regulations.

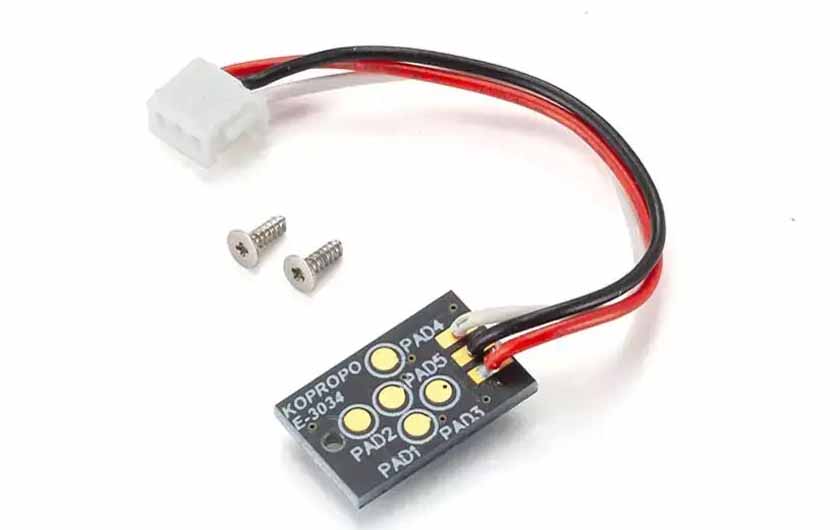

Gyro CPU
A dedicated CPU has been integrated into the gyro unit’s circuit board, allowing for ultra-precise control. With faster processing speed, response time is dramatically improved, eliminating the common issue in older gyros where higher gain would reduce turning performance. This next-generation gyro unit delivers unmatched stability and takes cornering precision to a whole new level.

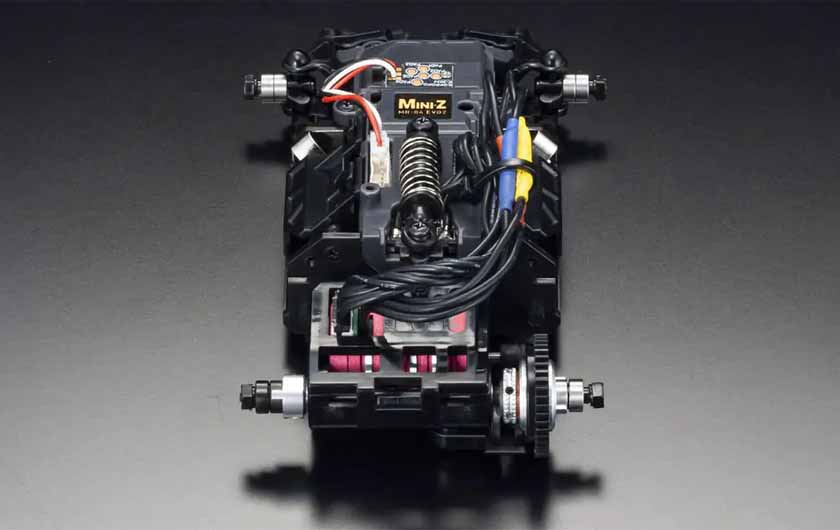

MR-04EVO2 Chassis
While retaining elements of the excellent MR-03 layout, the new MR-04EVO2 chassis achieves significant performance improvements with changes to the front suspension and a lower C of G that work in synergy with a sensored brushless motor. Both narrow and wide tread settings are available by changing the lower and upper plates on the front as well as the steering tie rod. Adjustable wheelbase allows chassis setting according to body type.

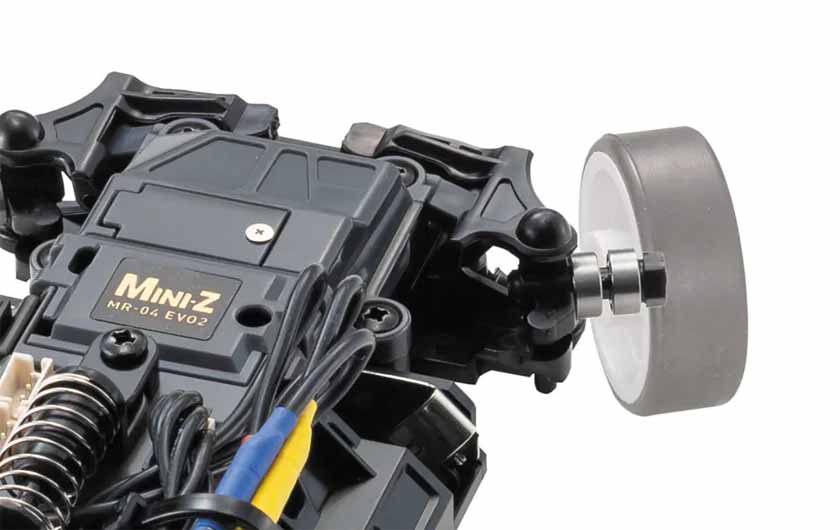

Front Suspension
While camber angle is optimized during cornering with the swing of the current upper arm design, the front suspension uses the new kingpin-integrated knuckle to further improve camber stability. Geometric revision of caster and trail etc. delivers more linear maneuverability. New spec front springs for the MR-04 with different hardness are available as options.

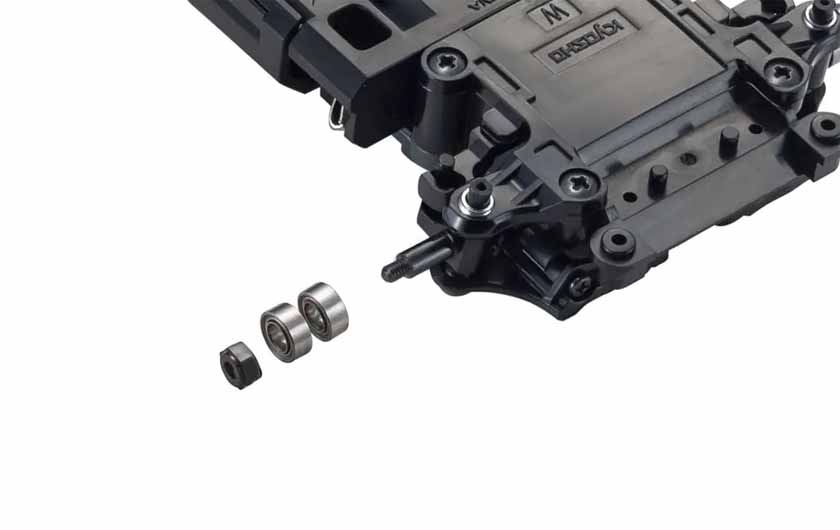

Integrated Kingpin
Front knuckle design features integrated kingpin with optimized clearance with the kingpin ball for smoother operation. Ball bearings have been changed to 3mm internal diameter for lower rotational resistance.

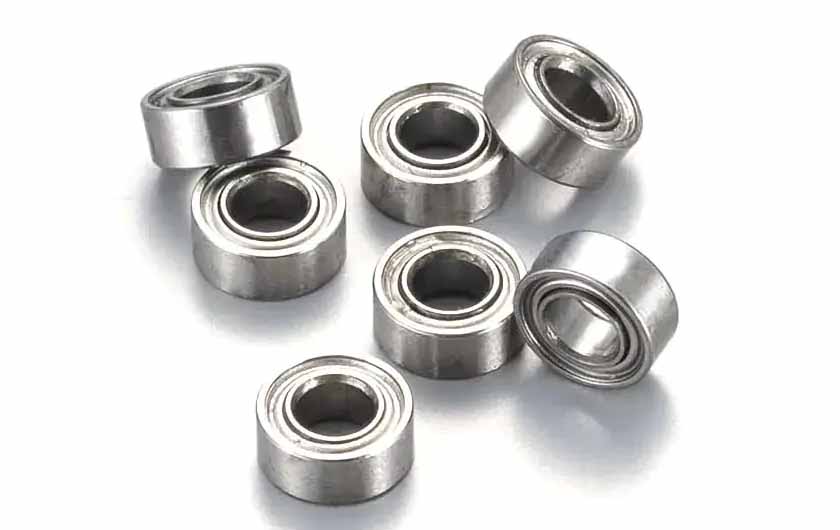

Full Ball Bearings
All 7 ball bearings are 3mm internal diameter for lower rotational resistance to minimize friction loss.

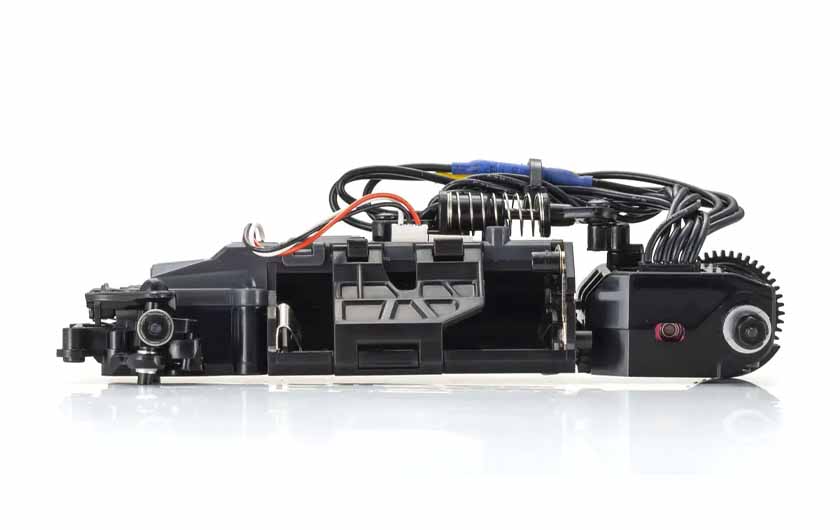

Low Center of Gravity
Lower mounting of the AAA batteries on the chassis realizes a lower center of gravity compared to the MR-03. In combination with the chassis shape, this improves stability through corners as well as enhancing speed and control.

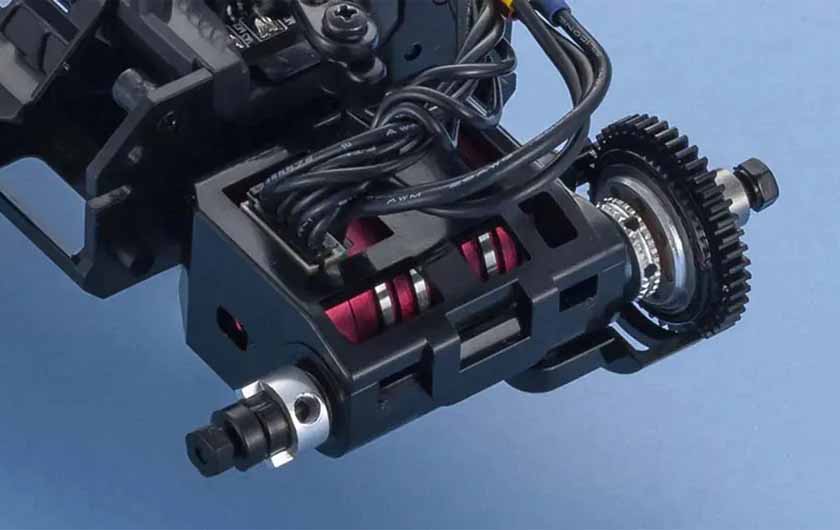

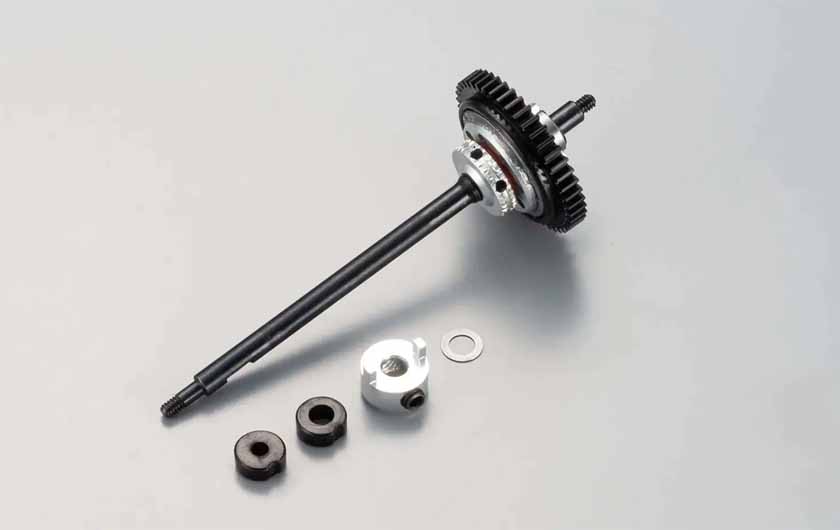

Ball Differential
Ball differential included as standard optimizes the rotational differences between left and right rear wheels when turning. Also provides moderate slip action to improve traction when excessive load is applied. Silver clear anodized finish to aluminum parts creates a formidable style to match performance.
Supports Various Transmitters
The new unit also supports high-speed communication with various high-end transmitters and receivers to realize unprecedented control response. Achieves transmission speeds of 0.99ms with KO units (ADV mode) and 0.9ms with Futaba units (EVO2 mode). *Previously 2.6ms ~ 3.0ms
Product Specs
Ball Bearings
Battery
Body
Charger
Chassis
Completion Level
Differential
Drive Type
Drivetrain
Front Track
Manufacturer #
Motor Type
Power Type
Product Height
Product Length
Product Weight
Product Width
Radio
Rear Track
Receiver
Scale
Servos
Speed Control
Suspension
Vehicle Size
Vehicle Type
Wheelbase
Compatibility
No results for your given fitment filters
Get Info From Communities
No boundaries, no compromises! New gyro improves cornering performance!
Product Details
In The Box
- (1) 1/28 MR-04EVO2 Chassis with V2 Gyro
Needed to Complete
- (1) 2+ Channel Radio System
- (1) 1/28 Electronic Speed Control
- (4) AAA Batteries for Chassis
