1:4 3/4 Piper J-3 Cub GP/EP Gas ARF 90.5"
1:4 3/4 Piper J-3 Cub GP/EP Gas ARF 90.5"
In Stock

1:4 3/4 Piper J-3 Cub GP/EP Gas ARF 90.5"

Skill Level 3
Item No.
Phoenix Model - PMMA0320
Write a Review
$329.99
RC Club points earned on this item shown at checkout.
Product $329.99
Add Ons
Estimated Total: $329.99
Estimated Total: $329.99
The link to 1:4 3/4 Piper J-3 Cub GP/EP Gas ARF 90.5" has been copied
Selected Store

Overview

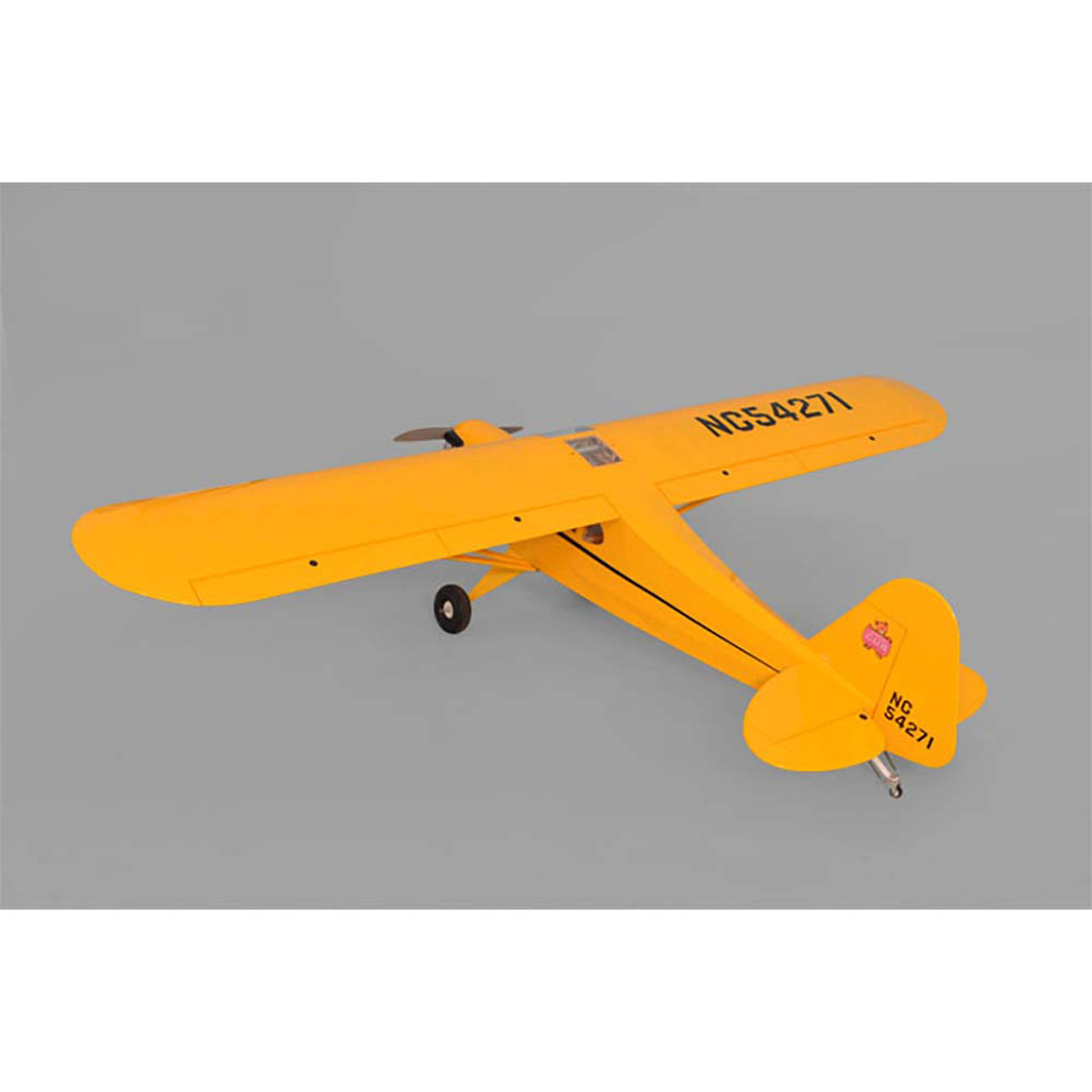

The 90.5" span Piper J-3 Cub GP/EP/Gas ARF combines classic looks with modern versatility! It arrives packed with superior scale details, including a realistic cockpit, instrument panel and pilot figure, operational cockpit side doors and functional panel flaps. For even more authenticity, add optional floats

  • Construction: Laser cut balsa and light plywood with hard points for mounting scale float kit (not included) built into fuselage, operational cockpit side-doors
  • Wing: Two-piece with quick-connect, streamlined wing struts, dual servo control flaps and ailerons
  • Covering: Hangaar 9 UltraCote
  • Engine Mount: Two-piece composite plastic
  • Motor Mount: Plywood

Key Features

  • Construction: Laser cut balsa and light plywood with hard points for mounting scale float kit (not included) built into fuselage, operational cockpit side-doors
  • Wing: Two-piece with quick-connect, streamlined wing struts, dual servo control flaps and ailerons
  • Covering: High quality heat shrink
  • Engine Mount: Two-piece composite plastic
  • Motor Mount: Plywood

Product Specs

Airfoil Shape
Y-Clark
Battery
Sold Separately
Completion Level
Almost Ready-To-Fly
Engine Size
.120 two stroke glow engine/ 20 CC two stroke gas engine (not included)
Material
Wood
Minimum Required Radio
8-channel
Minimum Speed Control
80 Amp
Motor Size
Recommended RimFire 1.20 (not included)
Product Length
60.6 in (1541mm)
Product Weight
7.9 - 8.1lbs (3600 - 4000g)
Propeller Size
Depends on motor or engine selected
Radio
Sold Separately
Receiver
Sold Separately
Servos
Sold Separately
Skill Level
Level 3
Speed Control
Sold Separately
Steering
Steerable tailwheel
Trim Scheme Colors
Cub Yellow and black
Wing Area
1219 sq in (78.6 sq dm)
Wing Loading
25.0oz/sq in (76.3g/sq dm)
Wingspan
90.5 in (2300mm)

Compatibility

No results for your given fitment filters

Video Overview

Product Details

icon-box
In The Box
  • Prebuilt and covered, Wing, Fuselage and Tail assemblies, Landing Gear, Wheels, Cockpit Instrument Panel, Painted Pilot, Hardware Package
icon-how-to
Needed to Complete
  • Electric Power; Brushless Motor: Rimfire 1.20 recommended Electronic Speed Control: Battery: 6S LiPo Battery Charger, LiPo Charging Bag
  • Glow Power; Engine: 1.20 two-stroke Glow Fuel, Glow Starter, Electric Starter
  • Gasoline Power; Engine: 20cc two-stroke
  • Radio: At least 8-channel
  • Servo: 7 standard servo: 2 aileron; 2 flap; 1 elevator; 1 rudder; 1 throttle (if using glow or gasoline engine)
  • Propeller: Compatible with selected brushless motor, or glow/gasoline engine
  • Building and field equipment
