In Stock

P-51D Mustang 20cc ARF, 69.5" with E-flite Electric Retract Set, Brushless Motor, and Spektrum Smart ESC

6S Compatible
Skill Level 3
Short Grass
Item No.
Hangar 9 - HAN2820BRME
$749.99
RC Club points earned on this item shown at checkout.
This product may require additional items in order to work out of the box. See below for required items that may be needed to complete.
Servos

I do not need to purchase this item.

A6380 Standard Digital HV High Torque High Speed Metal Gear Aircraft Servo
HAN2820BRME
A6380 Standard Digital HV High Torque High Speed Metal Gear Aircraft Servo
SPMSA6380
In Stock
$37.99
0 of 7 Selected
Transmitters

I do not need to purchase this item.

NX8+ 20-Channel DSMX Transmitter Only
HAN2820BRME
NX8+ 20-Channel DSMX Transmitter Only
SPMR8210
In Stock
$449.99
0 of 1 Selected
Chargers

I do not need to purchase this item.

S1200 G2 AC 1x200W Smart Charger
HAN2820BRME
S1200 G2 AC 1x200W Smart Charger
SPMXC2020
In Stock
$189.99
0 of 1 Selected
Receivers

I do not need to purchase this item.

AR10360T+ DSMX 10-Channel AS3X+ & SAFE Telemetry Receiver
HAN2820BRME
AR10360T+ DSMX 10-Channel AS3X+ & SAFE Telemetry Receiver
SPM-1034
In Stock
$199.99
0 of 1 Selected
Propellers

I do not need to purchase this item.

Electric Propeller, 16 x 8E
HAN2820BRME
Electric Propeller, 16 x 8E
APC16080E
In Stock
$9.54
0 of 1 Selected
Product $749.99
Add Ons
Estimated Total: $749.99
Estimated Total: $749.99
Selected Store

Hangar 9 P-51D Mustang 20cc RC Airplane Introduction

Make it powerful and make it able to fly far. These simple requirements sparked North American Aviation to create a phenomenal weapon called the P-51. Beyond its muscle, gas storage and gun slinging capabilities, pilots loved to fly it. Better known as the Mustang, it became America's favorite fighter airplane, possibly of all time. The Hangar 9® P-51D Mustang 20cc ARF brings valiant tales of this warbird to life in a convenient 1/6th-scale model with unrivaled authenticity.

Hangar 9 P-51D Mustang 20cc RC Airplane Overview

The Hangar 9® P-51D Mustang 20cc ARF is an expertly crafted model that combines modern engineering, outstanding flight capability, plus no compromise power-it-the-way-you-want with gas, glow, or electric power to deliver a replica warbird with stunning looks. Modeled after Mustangs used by the 375th Fighter Squadron during WWII, it's constructed in 1/6th-scale with lightweight balsa and plywood for legendary durability.

Leading the list of stunning details is the expertly applied, satin-finish covering of the sleek airframe. The lightweight material captures scale features like panel lines, rivets, stenciling and distinct colors for a brilliant appearance that's also durable. Bringing its authenticity even further is a well-appointed cockpit with a 3D instrument panel, an intricately painted pilot figure and faceted utility compartment. The updated cowling with a more scale-like shape features a matching finish with inlets and exhaust, plus a matching spinner. Optional-use wing tanks can be attached on the included wing pylons, or removed to improve high-speed maneuverability. Functional shock-absorbing gear struts include scale-style axles with room for the large wheels that make flying from grass easier.

No matter how you look at it, this Mustang is an impressive model for its size. Its two-piece wings smoothly connect with the scale wing fillet and distinct air scoop. Control surfaces feature an airfoiled design for smoother flight, and scale hinge mounting points lines with factory drilled hinges for easy installation. You can take the scale experience higher by replacing the rugged fixed landing gear with E-flite® electric retracts available for both the main and tail when locations (sold separately or in money-saving combos). Functional flaps allow a wider flight envelope that includes shorter takeoffs and slower landing speeds.

A large top-hatch provides extensive interior access from the cockpit to the firewall. The included hardware package is complete to make assembly as simple as possible and provide easy-to-install mounting options for all the engine and electric power recommendations. No matter what power plant you install, handling in the air is impressive with a look and control feel that honors the original. Whether this is your first warbird, or the perfect complement to your collection, the Hangar 9 P-51D Mustang 20cc ARF model is the model you've been looking for.

Hangar 9 P-51D Mustang 20cc RC Airplane Features

  • Expertly constructed with lightweight, laser-cut balsa and plywood
  • Finely detailed, satin-finish covering includes scale stenciling, panel lines, and more
  • Two decal sets let you customize the trim in "Geraldine" or "Sky Bouncer" livery
  • Detailed cockpit includes a 3D instrument panel, expertly painted pilot bust and more
  • Rugged fixed landing gear with 4-inch wheels and realistic shock-absorbing struts (included)
  • Retract ready with optional E-flite electric retracts sold separately or in money-saving combos
  • Functional flaps expand the flight envelope and enhance scale functionality
  • Scale control surface hinge lines, gear doors, wing guns and antenna
  • Updated design cowl with a more scale-like shape plus simulated engine and exhaust detail
  • Scale spinner with matching paint finish
  • Optional-use wing pylons with removable drop tanks
  • Two-piece, plug-in wing for easy transport and field assembly
  • Large top-hatch offers complete access to the electronics and fuel tank
  • Complete hardware package includes everything for electric or gas power recommendations
Scale Detail for the Hangar 9 P-51D Mustang 20cc RC Airplane
Scale Detail

Beyond the factory applied satin-finish printed covering, other iconic details include airfoil-shaped tail surfaces, realistic engine exhaust, wing guns, gear doors, optional-use drop tanks, radio antenna, a 3D instrument panel and a painted pilot figure.

Functional Flaps for the Hangar 9 P-51D Mustang 20cc RC Airplane

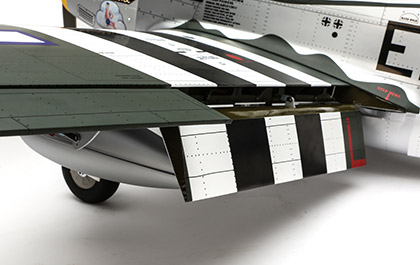

Functional Flaps

Light wing loading and a semi-symmetrical airfoil offer flight performance that's comfortable at a wide range of speeds. Operational flaps allow its versatile flight envelope to open even wider so you can increase flight realism that includes shorter takeoffs and slower landings.

Lightweight Construction for the Hangar 9 P-51D Mustang 20cc RC Airplane
Lightweight Construction

Laser-cut, lightweight balsa and plywood construction is utilized to bring the P-51D Mustang 20cc to life as a durable scale model that's expertly built to exacting standards.

Custom Decals for the Hangar 9 P-51D Mustang 20cc RC Airplane

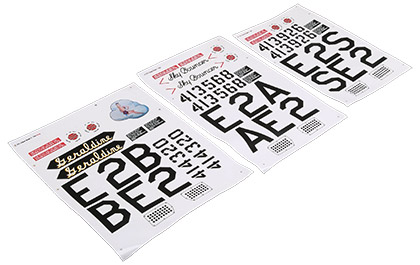

Custom Decals

Choose from one of the two nose-art decals included to finish your model off. “Sky Bouncer” was flown by Captain Bruce (“Red”) Rowlett, and “Geraldine” was flown by Captain Charles Roscoe (“Chuck”) Cummins, both with the 361st Fighter Group, 375th Fighter Squadron stationed in England during WWII.

Convenience Features for the Hangar 9 P-51D Mustang 20cc RC Airplane
Convenience Features

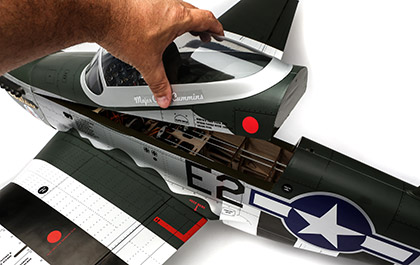

The wing panels feature a strong aluminum tube joiner for ease of transport and storage. When the model is upright, full access inside the model is through a large top-hatch that makes any maintenance and battery changes simple.

Power It the Way You Want It for the Hangar 9 P-51D Mustang 20cc RC Airplane

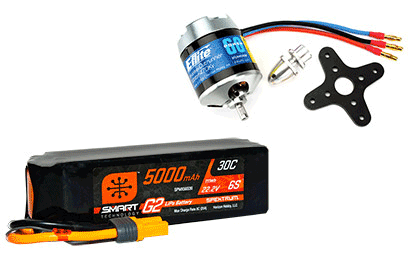

Power It the Way You Want It

The P-51D Mustang 20cc is designed to accept common 20cc gas engines, a Saito FG-21, or E-flite Power 60 brushless electric outrunner motor system with a 6S LiPo battery. All hardware needed to install any of the recommended power systems is included so you can get to assembly right away and in the air faster. This 20cc ARF is also the perfect replacement airframe for the stock motor, ESC, and recommended flight battery used in the giant E-flite® Carbon-Z® T-28.

Optional Retracts for the Hangar 9 P-51D Mustang 20cc RC Airplane

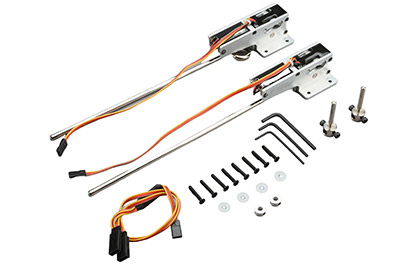

Optional Retracts

Rugged fixed landing gear with functional shock-absorbing struts are included so you can keep the project simple and still enjoy the benefit of smooth ground handling. The optional E-flite® electric retract set (sold separately or in money-saving combos) accepts the struts, features all-metal durability and is easy to install so you can take in-flight scale realism to a higher level.

Product Specs

Airfoil Shape
Semi Symmetrical
Approximate Assembly Time
20+ Hours
Battery
Sold Separately
CG (Center of Gravity)
6 9/32" (160 mm) behind leading edge of the wing
Charger
Sold Separately
Completion Level
Almost Ready-To-Fly
Connector Type
IC5
Flaps
Yes
LiPo Compatibility
6S
Material
Wood
Minimum Required Radio
5+ Channel
Motor Size
Power 60 1800W outrunner with 100A ESC (included) and 6S LiPo (sold separately)
Power Type
Electric
Product Length
60" (1524 mm)
Product Weight
11.5-13 lbs (5200-5900g)
Radio
Sold Separately
Receiver
Sold Separately
Recommended Motor Battery
6S 5000-7000 mAh Lipo
Retracts
Included
Servos
Sold Separately
Skill Level
Level 3
Speed Control
Sold Separately
Spinner Size
3.7" (94 mm)
Trim Scheme Colors
Printed Covering
Wingspan
69.5" (1765 mm)

Compatibility

No results for your given fitment filters

Hangar 9 P-51D Mustang 20cc ARF RC Airplane Video

$102.97 Combo Savings

Save $102.97 when you buy the P-51D Mustang 20cc ARF, 69.5" with E-flite Electric Retract Set, Brushless Motor, and Spektrum Smart ESC Combo.

$852.96 if purchased separately.

The Hangar 9® P-51D Mustang 20cc ARF is an expertly crafted model that combines modern engineering, outstanding flight capability, plus no compromise power-it-the-way-you-want with gas, glow, or electric power to deliver a replica warbird with stunning looks. It's also available in money-saving combos with the optional electric retracts and an electric power system.
Looking For Parts?

Product Details

icon-box
In The Box
  • (1) Hangar 9 P-51D Mustang 20cc ARF
  • (1) E-flite 60-120 85-Degree Strut-Ready Electric Retract Set (EFLG510)
  • (1) E-flite Power 60 Brushless Outrunner Motor, 470Kv (EFLM4060B)
  • (1) Spektrum Avian 100-Amp Brushless Smart ESC (SPMXAE1100)
  • (1) User Manual
icon-how-to
Needed to Complete
  • (1) Full-range 6+ channel transmitter and receiver
  • (7) Standard-size servos
  • (1) 6S 22.2V 5000–7000mAh LiPo with EC5 or IC5 Connector
  • (1) 16 x 8E Propeller
  • Tools and Adhesives
