Sbach 342 Aerobat .46-.55 GP EP ARF 55.3"
Item No.
Phoenix Model -
PMMA1355
$229.99
RC Club points earned on this item shown at checkout.
Estimated Total:
$229.99
Selected Store

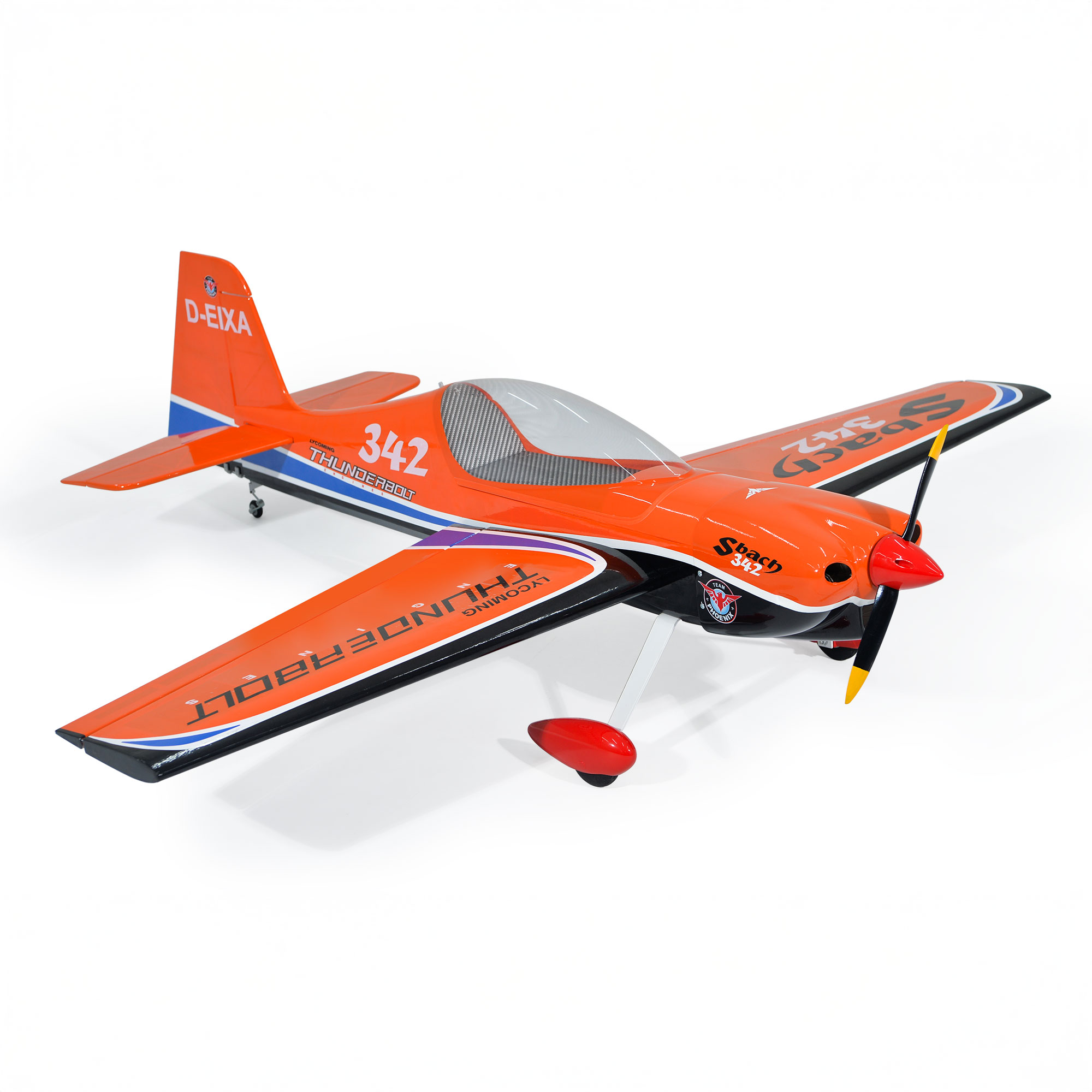

Flies just like the full-size!
The Phoenix Model Sbach is designed to look just like its high-performance bigger brother. It handles extreme aerobatics that would put most planes to shame. Plus, it’s ready to accept either glow or electric power systems and, since it’s an ARF assembly can be completed in just a few hours. Choose a solid power system and get the Sbach in the air today!
- Compatible with glow or electric setups
- Capable of extreme acrobatics
- Bolt-on two-piece wing for easy assembly and transport
- Removable canopy for easy radio gear set-ups and LiPo battery changes
- Extremely lightweight laser-cut all-wood construction
- Pre-painted pilot figure
- Full assembly hardware

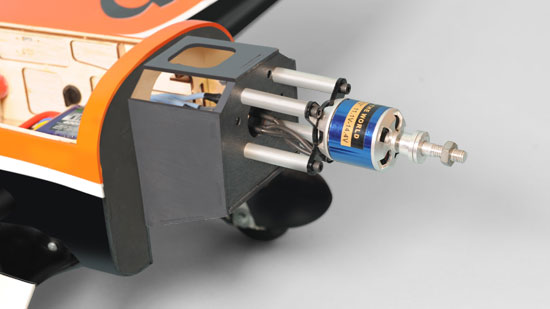

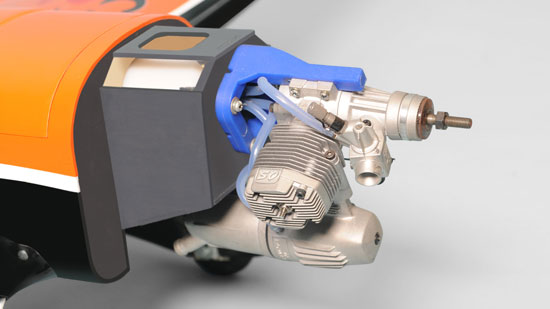

The Sbach can operate with either glow or electric power systems.

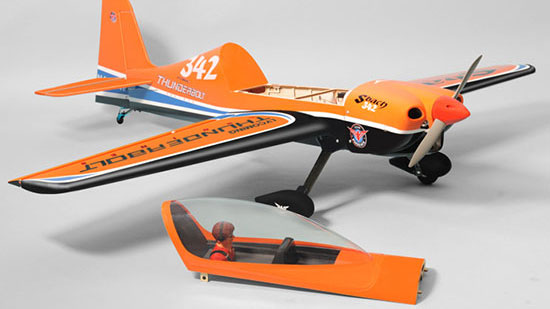

An easy-access hatch holds all your radio gear and other electronics.

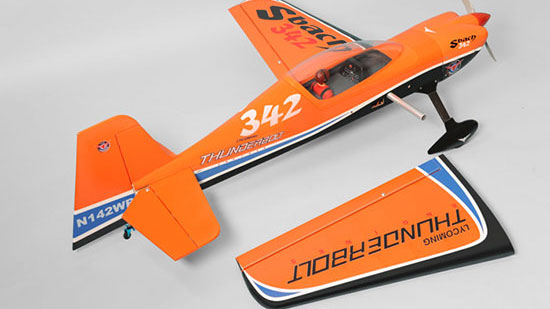

The Sbach’s wings bolt on for easy transport and assembly at the field.
Full assembly hardware
Capable of extreme acrobatics
- Construction: All wood laser cut
- Wing: Bolt-on two-piece with aluminum wing tube
- Aileron Control: Dual servo
- Covering: Hangar 9 UltraCote, color scheme is orange and black with blue and white accents
- Canopy: Clear, removable for easy access to electronics, painted pilot bust
- Spinner: Red plastic 2.3" (58mm)
- Engine Mount: Two-piece composite
- Motor Mount: Plywood
- Landing Gear: Main, prebent aluminum, spring wire tail gear 2.5" (65mm) diameter main wheels, 1" (25.4mm) diameter tail wheel
- Fuel Tank: Approximately 10oz (295cc)
Specifications
- Wingspan: 55.3" (1405mm)
- Length: 55.3" (1405mm)
- Flying Weight: 6 - 6.6lbs (2.8 - 3kg)
- Wing Loading: 23.27oz sq/ft (71g sq/dm)
- Airfoil: NACA
- Center of Gravity: 3.9 - 3.9" 95 - 100mm back from the leading edge of the wing at the fuselage
- Control Throws
- Ailerons: Low: 10mm up/down, 10% expo High: 12mm up/down, 10% expo
- Elevators: Low: 10mm up/down, 12% expo High: 12mm up/down, 12% expo
- Rudder: Low: 25mm right/left, 15% expo High: 40mm right/left, 15% expo
Product Specs
Completion Level
Skill Level
Compatibility
No results for your given fitment filters
Phoenix Model Sbach 342 Aerobat .46-.55 GP EP ARF Video
Get Info From Communities
Product Details

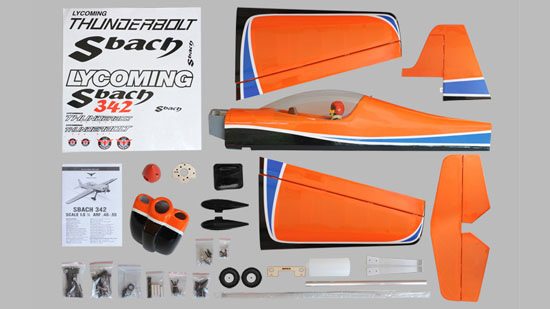

In The Box
- ARF S-Bach Aerobatic Airplane with Fuel Tank
- Motor Mount
- Engine Mount
- Landing Gear
- Spinner
- Pilot Bust and Instructions
Needed to Complete
- Radio: 4-channel with five servos
- Glow Power; Engine: .46-.55 cu in (7.5-9.0cc) 2-stroke .52 cu in (8.5cc) 4-stroke Receiver Battery: 4.8-6V / 800-1200mAh NiMH Glow fuel, prop, glow starter,
- Electric Power; Brushless Motor: .46-.55 outrunner ESC: 50-70A brushless compatible Battery: 4000-5000mAh LiPo battery Battery Charger: Compatible with selected battery Prop to match selected motor
- Building and field equipment
