Overview

The Piper Cub was produced in the early thirties and forties and quickly became one of the most beloved light aircraft of all time. Its successor, the Super Cub, was produced from 1949 to 1994 and continued the tradition of maneuverability and ease of flight started by the original. This model is 3D engineered to produce precision parts that match perfectly with the full scale version. It features removable wings for easy transportation, and is pre-cut and pre-sheeted for quicker construction.

  • Construction: Laser cut balsa and light plywood
  • Wing: 2 piece w/all wood construction, ailerons pre-installed, aluminum wing joiner
  • Aileron and Flap Control: Dual servo
  • Covering: Hangar 9 UltraCote
  • Radio Compartment: Plywood reinforced
  • Cowl Pre-painted Fiberglass
  • Canopy: Clear with painted-on frame lines
  • Landing Gear: Scale shock absorbing steel main gear,aluminum tail gear
  • Wheels: Two 4.25" (108mm) foam main, one 1" (25mm) tail wheel
  • Fuel Tank: Approximately 16oz (473cc)
  • Motor Mount: Three plywood plates with aluminum standoffs
  • Engine Mount: Plywood with aluminum standoffs

Features

  • Pre-covered in high-quality film
  • Plug in wings for easy transport and setup
  • Strong, light construction
  • Superb flight characteristics
  • Accurate scale details
  • Full hardware included

Specifications

  • Wingspan: 107" (2720mm)
  • Weight: 19 - 20lb (9 - 9.5kg)
  • Length: 68.6" (174.2m)
  • Wing Area: 1705 sq in (110 sq dm)
  • Wing Loading: 26.54 oz sq/in (81 sq/dm)
  • Wing Type: NACA Airfoil
  • Servo Mount: 0.83 x 1.6" (21 x 42mm)
  • Center of Gravity: 4.3" (109mm) Back from the wing's leading edge measured at the fuselage
  • Control Throws- High Rate Low Rate
  • Elevator: 0.39" (10mm) 12% expo 0.47" (12mm) 12% expo
  • Rudder: 1.2" (30mm) 15% expo 1.6" (40mm) 15% expo
  • Ailerons: 0.39" (10mm) 10% expo 0.47" (12mm) 10% expo
  • Control Throw Flap: mid, (15mm) down, landing 20mm down

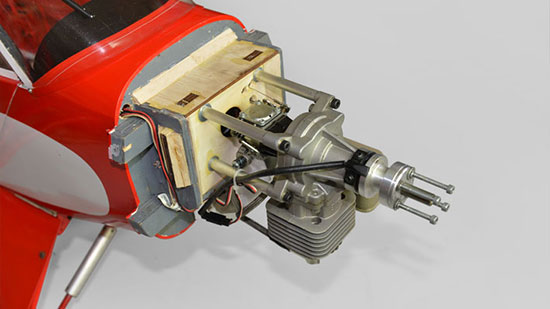

GP/EP compatibility
GP/EP compatibility

Designed for GP/EP compatibility

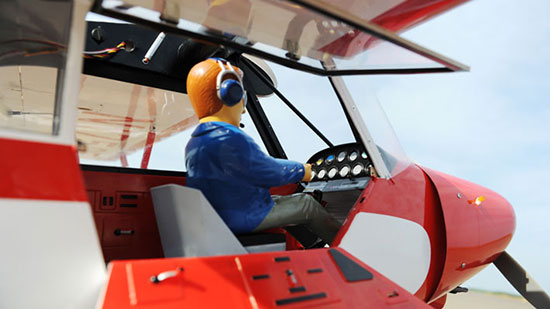

Cockpit
Cockpit

Full cockpit and instrument panel

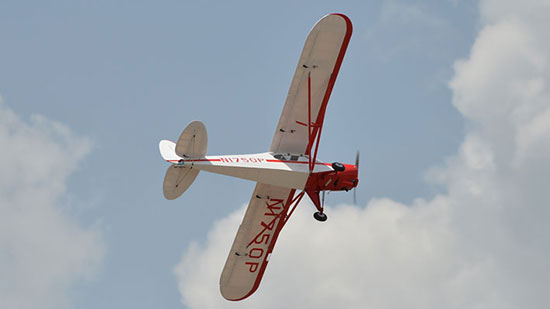

Quality Construction
Quality Construction

Top quality balsa and light plywood construction

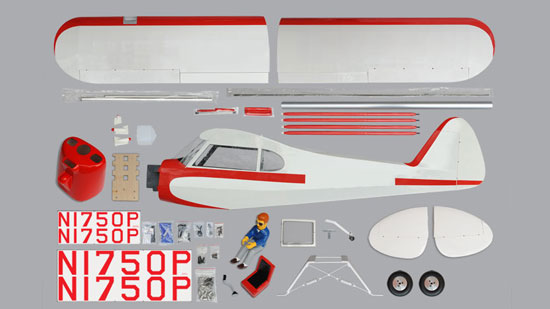

All Included
All Included

Includes everything you see here!



Compatibility

No results for your given fitment filters

Video Overview

Product Details

icon-box

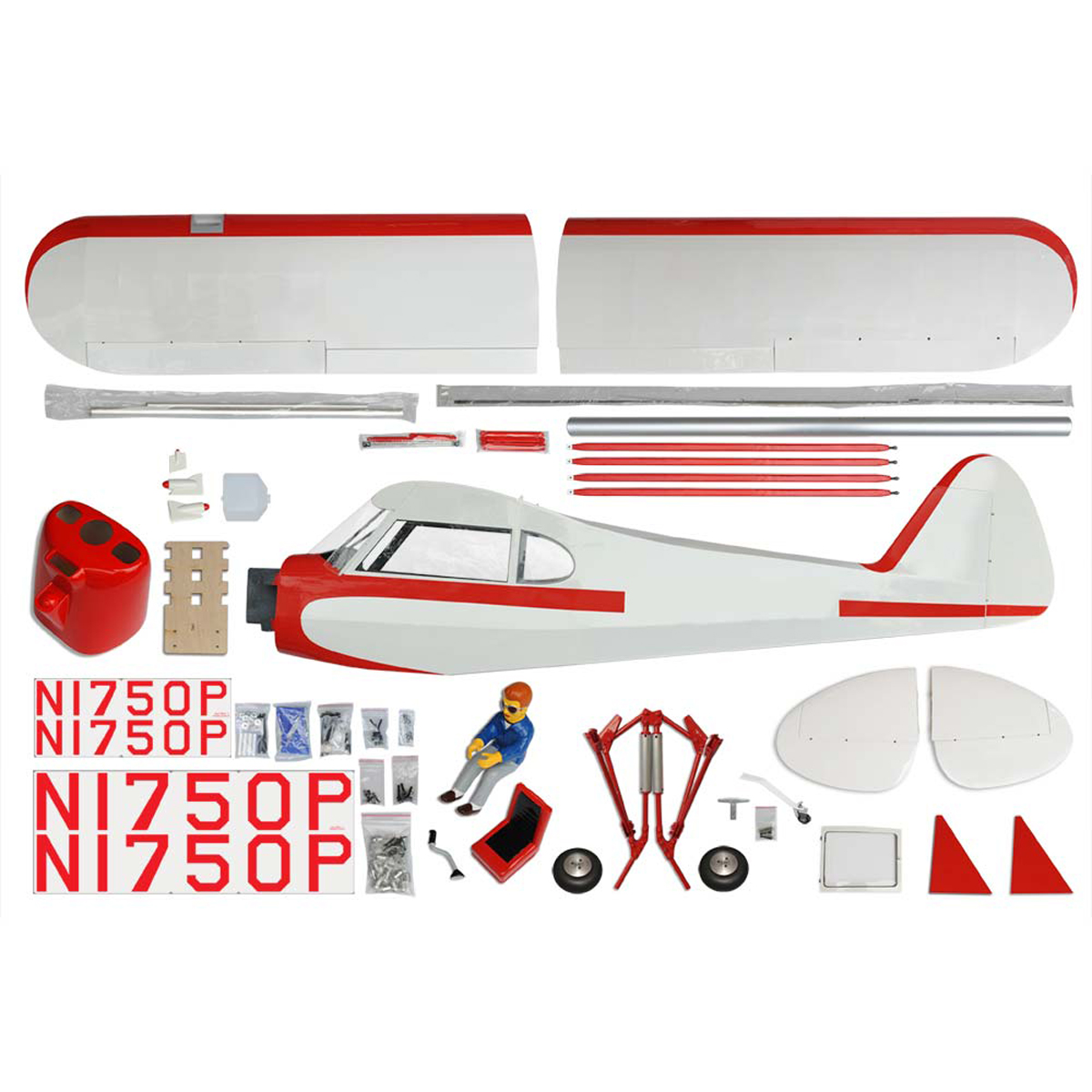

In The Box
  • ARF Super Cub 30cc Airplane with Landing Gear
  • Wheels
  • Fuel Tank
  • Instrument Panel
  • Decals
  • Pilot
  • Product manual
icon-how-to
Needed to Complete
  • For Gasoline Operation; Engine: 30cc 2/stroke
  • For Electric Operation; Brushless Motor: Rimfire 1.60 ESC: 120-160A LiPo Battery: 12S up to 5000 - 6000mAh (not carried) LiPo Charger: To match selected battery Propeller: 18x8 E APC
  • Radio: 6-channel
  • Servos: Eight standard high-torque (2-aileron; 2-flap; 2-elevator; 1-rudder; 1 throttle)
  • Y-Harness: For ailerons
  • Receiver Battery: 6V NiMH, at least 2400mAh
  • Misc. Items: 1/4" foam rubber padding, medium fuel tubing, propeller, building and field equipment.
