Yak 54 Mk2 GP EP Gas ARF 66.3"
In Stock

Yak 54 Mk2 GP EP Gas ARF 66.3"

Skill Level 3
Item No.
Phoenix Model - PMMA1710
Write a Review
$429.99
RC Club points earned on this item shown at checkout.
Product $429.99
Add Ons
Estimated Total: $429.99
Estimated Total: $429.99
The link to Yak 54 Mk2 GP EP Gas ARF 66.3" has been copied
Selected Store

An impressive intermediate aerobat!

Harriers. Torque rolls. Knife-edge maneuvers. The YAK 54 Mk2 can do them all – and then some – whether you install glow, gasoline or electric power! Features laser-cut all-wood construction, a removable canopy, high-quality film covering, a bolt-on two-piece wing, a painted pilot figure and more.
  • Capable of precise and extreme 3D aerobatics.
  • Compatible with glow, gasoline or electric power.
  • Extremely lightweight, laser-cut all-wood construction.
  • Factory-painted fiberglass cowl.
  • Removable canopy.
  • High-quality film covering.
  • Bolt-on two-piece wing with NACA airfoils.
  • Painted, preinstalled pilot figure.
  • Aluminum main landing gear.
  • Spring wire tail gear.
  • Servo mount.
  • Plastic spinner.
  • Decals.
  • All hardware included.

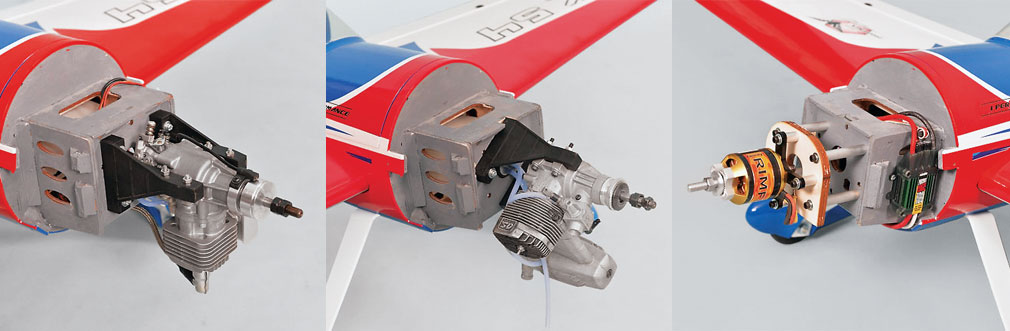

Phoenix¨ Model YAK 54 Mk2 GP/EP ARF - Compatible with glow, gasoline and electric power!
Compatible with glow, gasoline and electric power!

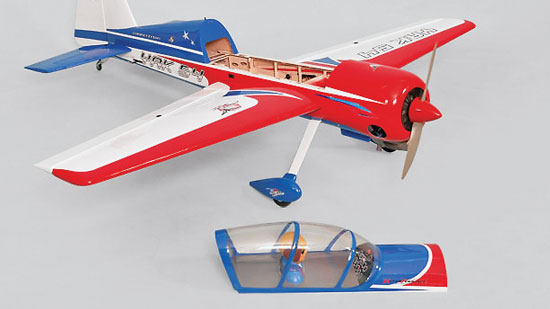

Phoenix¨ Model YAK 54 Mk2 GP/EP ARF - Removable canopy
Removable canopy.

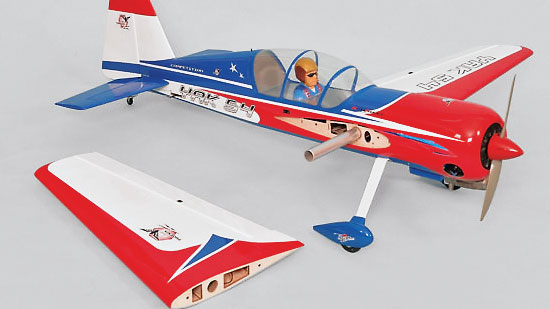

Phoenix¨ Model YAK 54 Mk2 GP/EP ARF - Wing
Bolt-on two-piece wing
  • Construction: Laser cut balsa and light plywood
  • Wing: 2 piece w/all wood construction, ailerons pre-installed, aluminum wing joiner
  • Aileron Control: Dual servo
  • Covering: Hangar 9 UltraCote
  • Radio Compartment: Plywood reinforced
  • Cowling: Pre-painted Fiberglass
  • Canopy: Clear with painted pilot figure and dashboard detail
  • Landing Gear: Prebent aluminum, prebent tailwheel wire
  • Wheels: Two 4.25" (108mm) rubber main, one 1" (25mm) tail wheel
  • Fuel Tank w/pre-assembled stopper, approximately 24oz (720cc)
  • Spinner: Plastic construction red in color, 2.7" (70mm) diameter
  • Engine Mount: Two-piece composite plastic
  • Motor Mount: Plywood with aluminum standoffs
  • Wingspan: 66.3" (1684mm)
  • Weight: 10.3 - 11.4lb (4700 - 5200g)
  • Length: 63.1" (1605mm)
  • Wing Area: 848 sq in (54.7 sq dm)
  • Wing Loading: 28.50 oz sq/in (87 g sq/dm)
  • Wing Type: NACA Airfoil
  • Servo Mount: 0.83 x 1.6" (21 x 42mm)
  • Center of Gravity: Per updated information from the factory, the CG range is 5.5 - 5.9" (140 -150mm) back from the wing's leading edge measured at the fuselage

Product Specs

Completion Level
Almost Ready-To-Fly
Skill Level
Level 3

Compatibility

No results for your given fitment filters

Product Details

icon-box
In The Box
  • ARF Yak 54 Mk2 Airplane
  • Wheels
  • Fuel Tank
  • Decals
  • Spinner
  • Instrument Panel
  • Pilot
  • Hardware
  • Product Manual
icon-how-to
Needed to Complete
  • For Glow Operation; Engine: 1.20 2-stroke, or 1.40 4-stroke
  • For Gasoline Operation; Engine: 20cc
  • For Electric Operation; Brushless Motor: 1600-2000W ESC: 120-160A LiPo Battery: 5S-6S up to 5500 - 6000mAh
  • Radio: 6-channel
  • Servos: Six standard high-torque (2-aileron; 2-elevator; 1-rudder; 1 throttle)
  • Y-Harness: One for aileron servos
  • Receiver Battery: 4.8-6V 1200-2000mAh NiMH
  • Misc. Items: 1/4" foam rubber padding, medium fuel tubing, propeller, building and field equipment.
